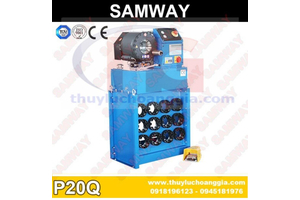

MÁY BÓP ỐNG THỦY LỰC SAMWAY P20Q
P20Q
SAMWAY_CHINA
12
P20Q Crimping Machine
 |
Feature description： ● Full Automatic Control with foot pedal ● Quick Change Tool and Die rack ● Energy Saving and Safety Operation ● TUV CE Approved  |
P20Q Hydraulic Hose Crimping Machine
Feature description：
● Full Automatic Control with foot pedal
● Quick Change Tool and Die rack
● Energy Saving and Safety Operation
● TUV CE Approved
P20Q Hydraulic Hose Crimping Machine
Specification：
| Main Specification | SAMWAY P20Q |
| Max Hydraulic Hose | 1 1/2"4SP |
| Crimping Range mm | 4-65 |
| Die Type | P20 |
| Master Die Length mm | 80 |
| Max Opening mm | +26 |
| Motor KW | 4 |
| Crimping Force KN | 1700 |
| Crimpings Per Hour | 1800 |
| Control | Control with advanced programmable chip |
| Foot pedal | Included |
| Die Rack | Included |
| Quick Change Tool | Included |
| Backstop Device | Optional |
| Control by Pressure | Optional |
| Noise Level dBA | 65 |
| Protection Class | IP56 |
| L*W*H mm | 680*600*1400 |
| Weight KG | 270 |
Standard Die Sets Included：
| Die No. | 10* | 12* | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 57 | 63 | 69 | 74* | 78* |
| Length | 60 | 60 | 60 | 60 | 60 | 75 | 75 | 75 | 80 | 80 | 90 | 90 | 100 | 100 | 100 | 110 | 110 |
* Special Die sets or dedicated die sets for RYCO PARKER Manuli Eaton hose available upon request
Order No.：
220V, 400V, 415V, 440V,480V 3 phase :00001510
110V 60hz single phase :00001511
220V 50/60hz single phase :00001512
P20Q Hydraulic Hose Crimping Machine
